SY35
Slim stick curtain wall.
The SYKON Superior SY35 is a 35 mm slim stick curtain wall system for conventional façade applications with a reduced sightline profile. Provides slender appearance while maintaining structural performance, allowing integration of top-hung windows, operable vents, and integrated façade door systems.
35mm
Sight line
190mm
Mullion depth, maximum
155kg
Vent weight, maximum
3000Pa
Wind, safety · ASTM E330
- 35 mm sight line
- Mullion depth 60 to 190 mm
- Two-level EPDM sealing
- Glazing up to 50 mm
01 · Overview
Product overview.
~40% less aluminium width than standard systems. Mullion depth range 60 to 190 mm with maximum inertia up to Ix = 480.43 cm⁴. Supports glazing up to 50 mm with Uf = 1.3 to 3.3 W/m²K thermal performance.
Villas
Residential Projects
Hospitality
Resort & Hotel
Commercial
Mid-Rise Façades
Architectural
Slim Sightlines
02 · Specifications
Technical specifications.
Technical Specifications
- Sightline Width
- 35 mm
- Aluminium Alloy
- EN AW 6063
- Mullion Depth Range
- 60 to 190 mm
- Max Inertia
- Ix = 480.43 cm⁴
- Glazing Type
- Single/Dbl/Triple
- Max Glazing
- Up to 50 mm
- Sealing
- Two-Level EPDM
Certifications & Performance
- Air Infiltration, ASTM E283
- 600 Pa
- Water (Static), ASTM E331
- 1200 Pa
- Wind (Serviceability), ASTM E330
- 2000 Pa
- Wind (Safety), ASTM E330
- 3000 Pa
- Thermal (Uf)
- 1.3 to 3.3 W/m²K
- Powder Coating
- Min. 75 microns
03 · Performance
Performance notes.
3000Pa
Wind, safety · ASTM E330
Water tightness 1200 Pa, ASTM E331.
04 · Configurations
Opening types.
- Parallel Projected Outward
- Parallel Projected Inward

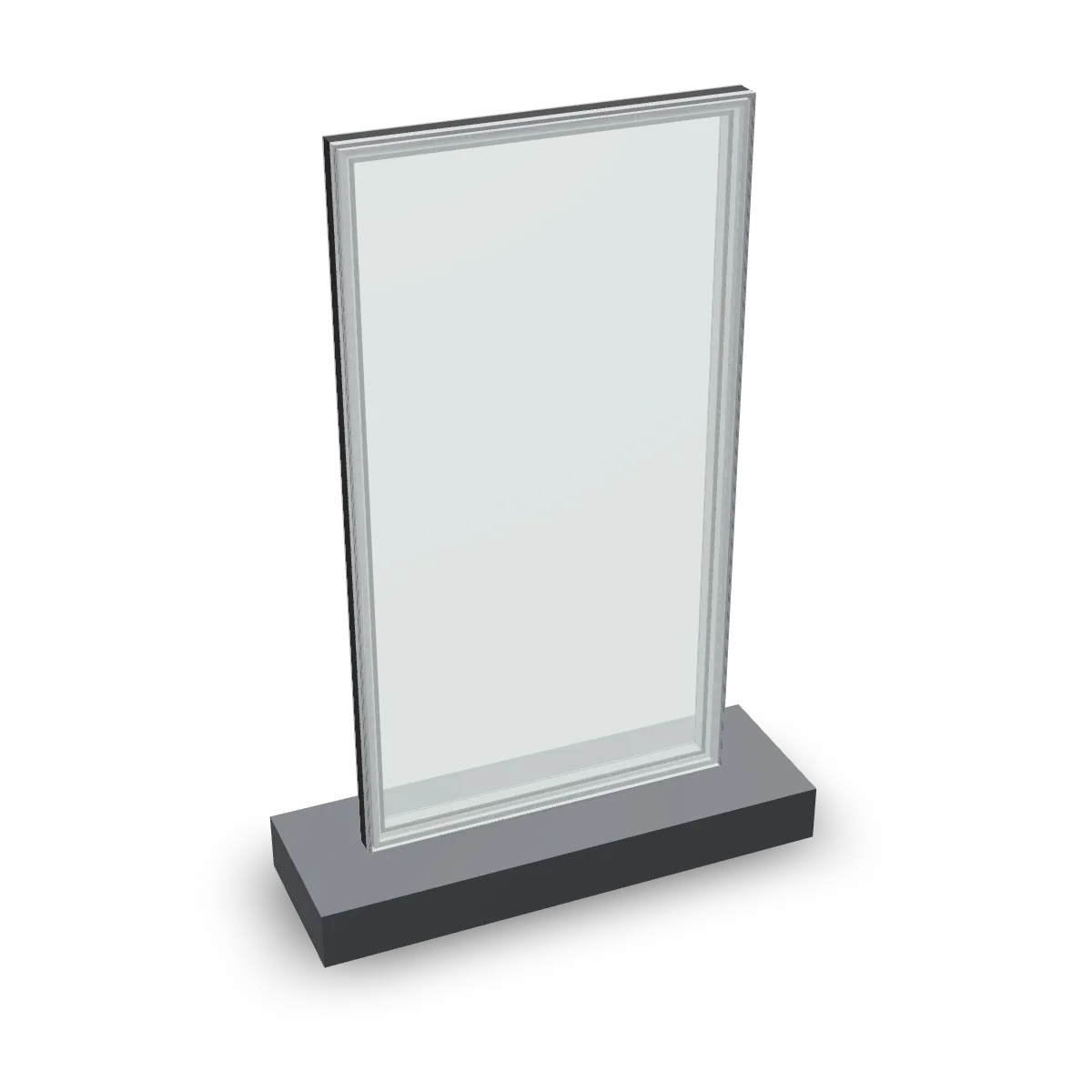

- Top-Hung Vent
- Captured Glazing
- Projected Inward
- Tilt & Turn Vent
05 · Profiles
Profile range.
Profiles as listed in the 2026 catalogue.
Mullion Profiles
| Profile | Depth |
|---|---|
| P 135 060 | 60 mm |
| P 135 100 | 100 mm |
| P 135 135 | 135 mm |
| P 135 142 | 142 mm |
| P 135 190 | 190 mm |
| P 135 192 | 192 mm |
Transom Profiles
| Profile | Depth |
|---|---|
| P 135 066 | 66 mm |
| P 135 106 | 105.5 mm |
| P 135 141 | 140.5 mm |
| P 135 196 | 195.5 mm |
06 · Details
Details and highlights.
Reinforcement Options
| Profile Range | Reinforcement |
|---|---|
| Small depth profiles | Insert tube 85 × 30 mm |
| Medium depth profiles | Insert tube 120 × 30 mm |
| Large depth profiles | Insert tube 175 × 30 mm |
| Alternative | Mullion aluminium sleeves |
Thermal Break Options
| Type | Size |
|---|---|
| T150410 | 10 mm |
| T150415 | 15 mm |
| T150420 | 20 mm |
| T150426 | 26 mm |
| T150432 | 32 mm |
| T150438 | 38 mm |
| T150444 | 44 mm |
Glazing Range
| Configuration | Thickness |
|---|---|
| Single glazing | Standard |
| Double glazing | Standard |
| Triple glazing | Supported |
| Maximum | Up to 50 mm |
Friction Hinge Capacities (Operable Vents)
| Arm (mm) | Max H (mm) | Max W (mm) | Max kg |
|---|---|---|---|
| 261 | 700 | 1200 | 50 |
| 317 | 800 | 1200 | 60 |
| 353 | 1000 | 1300 | 69.5 |
| 414 | 1200 | 1400 | 88.5 |
| 458 | 1400 | 1400 | 102 |
| 511 | 1600 | 1500 | 135 |
| 556 | 1700 | 1500 | 137 |
| 602 | 1800 | 1500 | 139 |
| 707 | 2000 | 1500 | 155 |
