Sliding · Thermal break
SL580
Thermally broken sliding, lift and slide.
The SYKON Superior SL580 is a 58 mm thermally broken sliding / lift & slide system for high-performance applications. Supports double rail, triple rail, hotel-type monorail, and sliding configurations with optional flyscreen integration.
43mm
Glazing
2880Pa
Wind, safety · ASTM E330
1200Pa
Water · ASTM E331
1000Pa
Dynamic water · AAMA 501.1
- Multi-chamber aluminium frame
- Thermally broken
- EPDM gasket sealing
- Glazing up to 43 mm
01 · Overview
Product overview.
Designed for coastal/marine environments, high-rise buildings, and projects with high wind and water loads. Multi-lock lift & slide operation provides superior acoustic performance. Tested up to 1200 Pa water tightness and ±2880 Pa wind safety.
High-Rise
Coastal & Marine
Commercial
Façade Systems
Residential
Premium Projects
Hospitality
Hotels & Resorts
02 · Specifications
Technical specifications.
Technical Specifications
- System Designation
- 58 mm thermo
- Aluminium Alloy
- EN AW 6063
- Thermal Break
- Present
- Glazing Type
- Double Glazing
- Tested Glass
- 30 mm (8+16+6)
- Max Glazing
- Up to 43 mm
- Sealing
- EPDM Gasket
Certifications & Performance
- Air Infiltration, ASTM E283
- 1.74 to 2.91 m³/h·m²
- Water (Static), ASTM E331
- 1200 Pa (no leak)
- Water (Dynamic), AAMA 501.1
- 1000 Pa (no leak)
- Wind (Serviceability)
- ±1920 Pa
- Wind (Safety)
- ±2880 Pa
- Deflection
- Within L/175
03 · Performance
Tested performance.
Measured Performance
| Parameter | Value |
|---|---|
| Specimen size | 2.5 × 3.0 m |
| Glass thickness | 30 mm (8+16+6) |
| Air @ 600 Pa | 1.7386 m³/h·m² |
| Air @ 1000 Pa | 2.912 m³/h·m² |
| Water (static) | No leak @ 1200 Pa |
| Water (dynamic) | No leak @ 1000 Pa |
| Structural load | ±1920 Pa |
| Safety load | ±2880 Pa |
Thermally broken with EPDM gasket sealing. Tested with 30 mm double glazing (8 + 16 + 6 mm).
04 · Configurations
Opening types.
- Three-Sash Sliding
- Four-Sash Meeting Stile
- Four-Sash Sliding

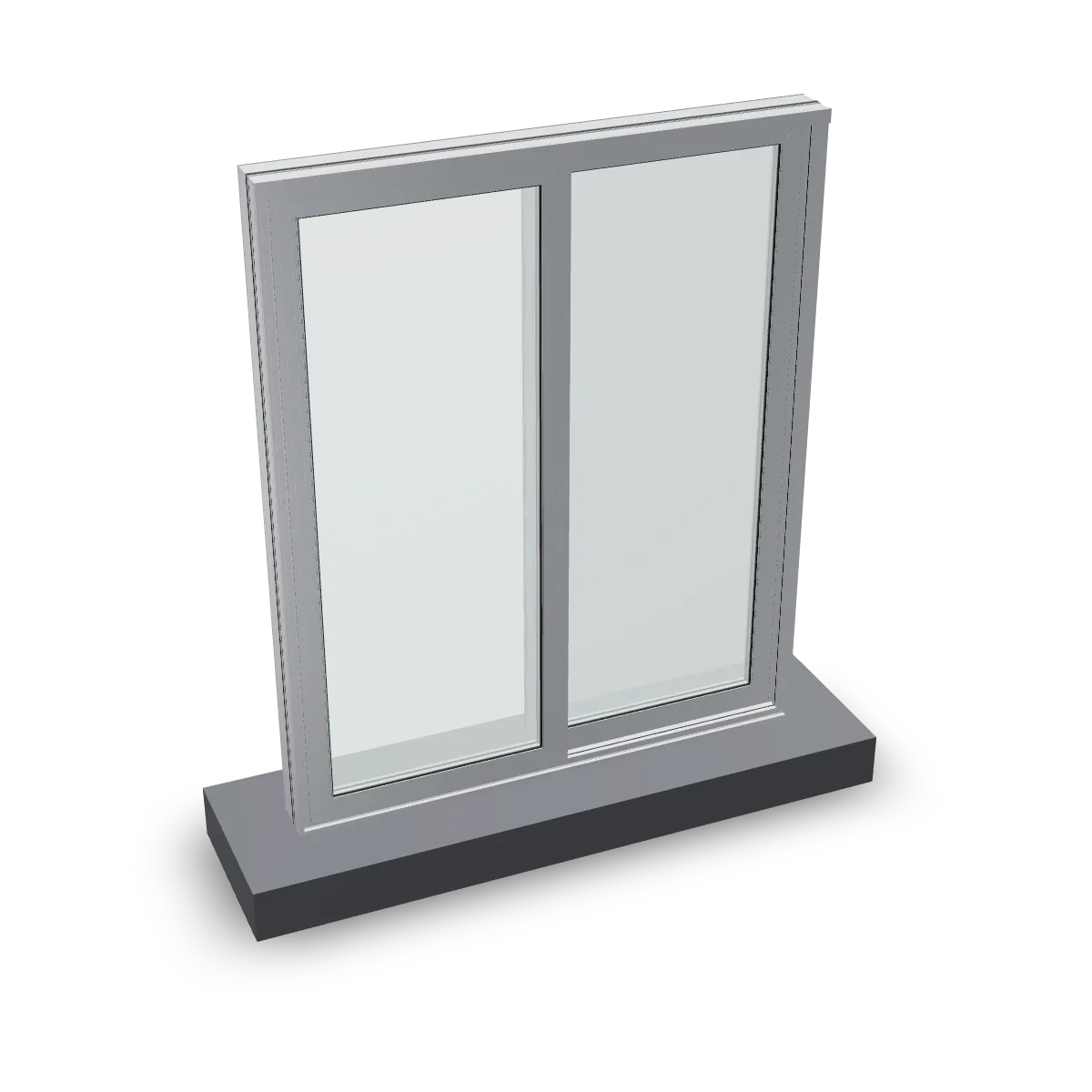

- Sliding + Flyscreen

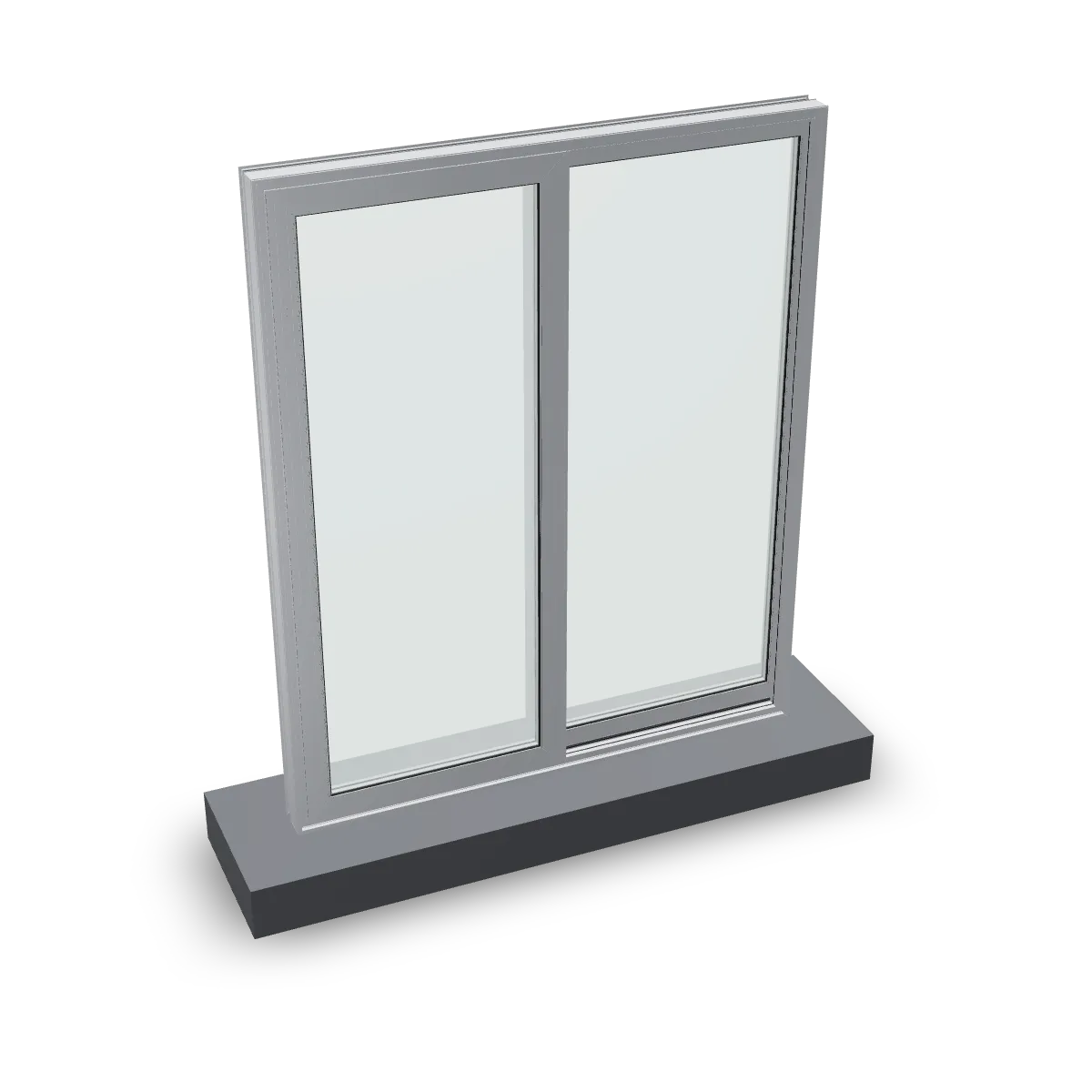

- Hotel-Type Monorail
- Corner (Embedded Rail)
05 · Profiles
Profile range.
Codes, types and weights as listed in the 2026 catalogue.
Rail / Frame Profile Options
| Profile | Type | Weight |
|---|---|---|
| C 580 100 | Double rail | 2237 gr/m |
| C 580 101 | Double rail with screen | 2610 gr/m |
| C 580 102 | Triple rail | 3252 gr/m |
| C 580 150 | Hotel type rail | 2083 gr/m |
| C 580 120 | Outer part rail | 1516 gr/m |
| C 580 121 | Inner part rail | 2149 gr/m |
| C 580 122 | Middle part rail | 1456 gr/m |
Sash, Post & Interlock Profiles
| Profile | Type | Weight |
|---|---|---|
| C 580 200 | Glazing sash | 1711 gr/m |
| C 580 250 | Slim glazing sash | 1044 gr/m |
| C 580 400 | Wide post | 1869 gr/m |
| C 580 401 | Narrow post | 1036 gr/m |
| P 580 500 | Interlock | 516 gr/m |
| C 580 510 | Meeting stile | 1358 gr/m |
06 · Details
Details and highlights.
Rail Width Options
| Configuration | Width |
|---|---|
| Double rail | ~136.8 mm |
| Double + screen | ~169.8 mm |
| Triple rail | ~210.8 mm |
Glazing Range
| Configuration | Thickness |
|---|---|
| Double glazing | Up to 43 mm |
| Tested config | 30 mm (8+16+6) |
Key Technical Highlights
- 58 mm thermally broken sliding
- Up to ±2880 Pa structural load
- Water tightness up to 1200 Pa
- Multi-lock lift & slide
- Double / triple / hotel-type rail
- Flyscreen integration
- Embedded rails
- Superior acoustic performance
